What is an EGR Cooler?
When you think about the inner workings of your car’s engine, there are a lot of moving parts that keep everything running smoothly. One crucial component is the Exhaust Gas Recirculation (EGR) system. But what exactly is EGR, and why is it so important? EGR stands for Exhaust Gas Recirculation.
It’s a system used in modern internal combustion engines to reduce nitrogen oxide (NOx) emissions. By recirculating a portion of the exhaust gases back into the engine’s intake, the EGR system helps lower the combustion temperature, which in turn reduces the formation of harmful NOx gases. At its core, the EGR system works by redirecting a portion of the exhaust gases back into the engine cylinders.
This mixture of exhaust gases with the air-fuel mixture reduces the peak combustion temperature, thus lowering NOx emissions. You can read more about how the EGR system works here.
An EGR cooler is used in modern diesel engines to lower the temperature of recirculated exhaust gases. The cooler typically consists of a heat exchanger, where hot exhaust gases pass through a series of metal tubes or fins. Engine coolant flows around these tubes, absorbing heat from the exhaust gases. Commercial trucks, especially those with diesel engines, rely heavily on EGR systems to comply with emission regulations.
These systems are designed to handle the higher demands of commercial operations. By reducing the temperature of the exhaust gases before they are reintroduced into the engine’s intake, the EGR cooler helps reduce NOx emissions, improve fuel efficiency, and prevent engine knocking. This process ensures better compliance with stringent emission standards and enhances overall engine performance.
Signs of a Failing EGR cooler.
For this article I will use a Volvo D13 engine suffering from frequent EGR problems. When the EGR cooler fails, several symptoms can indicate the issue. One of the first signs is high fuel consumption. This happens because the engine’s efficiency decreases as the EGR system is not functioning correctly, leading to the engine burning more fuel to maintain performance.
Another symptom of a failing EGR cooler in Volvo D13 engine is loss of power. The engine might struggle to produce the usual amount of power because the recirculated exhaust gases are not adequately cooled. This can result in inefficient combustion, which directly impacts the engine’s power output.
Rising engine temperature is also a common indicator. The EGR cooler’s role is to cool the exhaust gases before they re-enter the engine. If it fails, the engine operates at higher temperatures, which can lead to overheating and potential damage to engine components.
Additionally, you may notice black smoke from the exhaust pipe. This occurs because unburned fuel is expelled through the exhaust system due to improper combustion. The black smoke is a sign that the engine is not burning fuel completely, often because the EGR system is not cooling the exhaust gases properly, leading to an imbalanced air-fuel mixture.
These symptoms collectively point to an EGR cooler that is not working as intended. High fuel consumption, loss of power, rising engine temperature, and black smoke from the exhaust are all telltale signs that the cooler is failing to perform its essential function in a Volvo D13 engine. If you notice these issues, it’s crucial to have your vehicle inspected by a professional to prevent further damage and ensure the engine operates efficiently.
list of EGR cooler failure error codes:
SPN 4752 FMI 7: EGR Cooler Efficiency code.
SPN 412 FMI 5: EGR Temp high, severe level.
SPN 412 FMI 15: EGR Temp high, least severe level.
SPN 411: EGR differential pressure sensor is reading high or low data.
P04D900: Related to low flow of exhaust gases, often pointing to an EGR cooler problem
P241300: General failure in EGR system performance, which can include issues with the EGR cooler
EGR cooler replacement – what do you need?

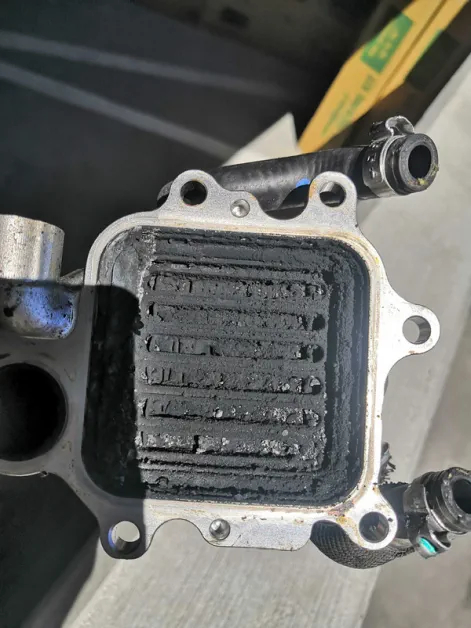

Replacing the EGR cooler in a vehicle can be a lengthy and sometimes arduous process.This is largely because the EGR cooler, which helps reduce emissions by cooling and recirculating exhaust gases, can become clogged with soot and carbon deposits over time. When this happens, the engine’s performance can suffer, and the EGR cooler needs to be replaced.
The replacement process involves several steps and requires specific parts to ensure the job is done correctly. Firstly, the EGR cooler itself must be replaced. For this, you will need an EGR Cooler (part numbers 21480645 or 22134241). In addition, an EGR Hose Kit (part number 85124530) and an EGR Hose (part number 21393264) are necessary to replace the old, worn-out hoses that may have become brittle or clogged.
To secure these hoses, you will need two EGR Hose Clamps (part number 20920723). These clamps ensure that the hoses are tightly connected and prevent any leaks. The cooler itself must be sealed properly, which is where the Cooler Gasket (part number 20841816) comes into play. You will need two of these gaskets to create a tight seal between the cooler and the engine.
Furthermore, additional clamps (part number 20755169) and seals (part number 1547253) are required to complete the installation. These parts help secure the EGR system components and prevent exhaust gases from escaping.
The entire process of replacing the EGR cooler is not just about swapping out old parts for new ones. It involves careful removal of the old cooler, cleaning the surrounding areas to prevent contamination, and precise installation of the new parts.
This meticulous work is necessary to avoid future blockages and ensure the EGR system operates efficiently. Despite the potential for the cooler to become clogged again over time, regular maintenance and using the correct parts can help extend its life and maintain your vehicle’s performance. However, considering the potential for the cooler to become clogged again over time, some may find it more practical to remove the EGR system altogether. Removing the EGR system can eliminate the risk of recurring issues and may simplify maintenance.
EGR Cooler repair costs.
Repairing or replacing the EGR cooler in a Volvo D13 engine can be quite costly, typically ranging from $1,500 to $2,500 USD. This includes the price of the cooler itself and labor costs. The high expense reflects both the complexity of the repair and the cost of OEM parts.
